Can 3D printed parts be used on passenger rail vehicles?

Yes, in the right places and with the right material. Interior fittings, trim, brackets, housings and covers are printed routinely by operators worldwide. The controlling constraint is not strength, it is fire behaviour: anything inside a passenger vehicle has to meet the fire, smoke and toxicity requirements your authority applies — NFPA 130 and 49 CFR Part 238 in the United States, EN 45545-2 in Europe. That rules out ordinary PLA, PETG and unrated nylon on the interior, and points at flame-retardant grades such as PEI. Safety-critical structure, braking and coupling components are a different question and stay off the list entirely.

What does fire, smoke and toxicity certification actually require from a printed part?

It is tested at the material and component level, not granted to a process. A provider proves compliance with test data for a specific printed material at a specific density and thickness, produced on a specific machine — which is why FST work costs more and why the paperwork matters as much as the part. Ask for the test report and the lot traceability for the material used on your job, and tell the shop which standard and hazard level applies before they quote. A part printed in an unrated look-alike material is not cheaper, it is simply not usable.

How do rail operators handle parts with no drawings?

Reverse engineering, which is the normal starting point for anything on a fleet built before CAD was standard. For flat and simple parts — escutcheons, spacers, bezels, blanking plates — calipers and dimensioned photographs are enough for a designer to model. For moulded shapes, worn castings and compound curves, 3D scanning captures the geometry and a designer rebuilds it as a parametric model. Budget that design time separately from printing, and insist on receiving the released STEP file. The file is what turns one rescued part into an on-demand spare for the rest of the fleet's life.

Is metal 3D printing worth it for legacy rail spares?

Sometimes, and the test is whether the part must be metal for a reason. Small non-structural metal fittings that were originally cast or machined at volumes no supplier will touch again — bracket bodies, housings, obsolete linkage covers, tooling inserts — can be printed in stainless or aluminium and finish-machined on the mating faces. Where the part is simple and solid, conventional machining from bar stock is usually cheaper. Where it is complex, hollow or unavailable at any price, additive wins. Structural, braking and load-path metal parts remain outside this conversation regardless of process.

How long does a printed rail spare take to get?

For a part with an existing file, most services quote in a day and ship in three to seven working days, with rush options that compress it further. The long pole is almost never the printing — it is reverse engineering when no model exists, and FST material availability when the part goes inside a passenger space. Operators who plan ahead get around this by having the twenty or thirty known-troublesome parts on each fleet modelled during scheduled overhaul, so that a failure later is a print order rather than a project.

Should a transit agency buy printers or use a service?

Start with a service, and let the demand tell you. Maintenance shops that print occasional shop aids and jigs get good value from an in-house desktop machine, and many already have one. Passenger-facing parts are the opposite case: they need rated materials, controlled process parameters, test documentation and traceability, which is a quality system rather than a machine purchase. The common landing point is both — jigs, gauges and fixtures printed in-house at the shop, and anything that goes on a vehicle or needs a certificate sent to a provider who already runs that material.

3D Printing Services for Rail and Transit Parts

3D printing services for rail and transit parts exist because rolling stock outlives its supply chain. A commuter car ordered in 1988 is still earning revenue, the company that moulded its interior trim was absorbed twice and closed, and the surviving stock of armrest caps ran out in 2011. Nobody will tool a new mould for forty pieces. Meanwhile the car is either running with a broken fitting or sitting out of service, and both cost more per day than the part ever did. This guide covers what rail operators, transit agencies and maintenance contractors realistically print, the fire and smoke rules that decide the material before anything else, and what to send a shop to get an accurate quote. Start with the 3D printing provider directory when you have the failed part in hand.

What Rail and Transit Fleets Actually Print

Five groups cover nearly all of it, and knowing which one a part belongs to settles process, material and price before anyone talks money.

Interior and passenger-facing fittings. Armrest and grab-rail end caps, seat trim and shrouds, window blind brackets, HVAC louvres and diffuser vanes, signage and timetable holders, door pushbutton bezels, luggage-rack end pieces, table catches and cover plates. This is the highest-volume category by far, and also the most tightly regulated — see the fire section below, because it governs everything here.

Cab and equipment-room spares. Gauge and instrument bezels, switch escutcheons, relay and terminal covers, insulating blocks and standoffs, console panels and blanking plates, cable pass-throughs, desk trim. Low quantities, mostly obsolete, and frequently the parts that hold up a vehicle acceptance after an overhaul.

Maintenance shop tooling. Drilling and bolt-pattern jigs, alignment and setting gauges, go/no-go wear gauges, protective caps for machined surfaces during handling, parts trays and shipping cradles, ergonomic tool aids for awkward underframe work. These never go on a vehicle, so they carry none of the certification burden, and they are the fastest way for a shop to prove the technology internally. The full case is in jigs, fixtures and manufacturing aids.

Retrofit and upgrade bracketry. The mounts that exist only because a particular CCTV camera, passenger counter, Wi-Fi access point, real-time information display or ticket validator was fitted to a particular fleet. Quantity is one per vehicle and the design will change after the pilot cars, which is exactly the low-volume production profile printing serves best.

Obsolete metal fittings. Bracket bodies, housings, covers and linkage components originally cast or machined, in quantities no foundry will quote. Metal 3D printing prints these in stainless or aluminium and the mating faces get finish-machined afterwards. It is the most expensive route on this page and the only one available for some parts.

Where Printing Is the Wrong Answer

Rail failures are not cosmetic failures, and the boundary here is drawn by regulation as much as engineering.

Anything in the braking, coupling or traction load path. Brake rigging, coupler components, draft gear, suspension and bogie parts, traction linkage. These are safety-critical, type-approved and inspected. Layer adhesion is the weak axis of a printed polymer part, and this is not the place to find that out.

Wheels, axles and running gear. Not a candidate under any process available to a commercial service.

Certified electrical apparatus. Live current-carrying components, contactor internals and anything with an approval attached to the original part number. A printed insulating cover is often fine; the certified apparatus it covers is not.

Pressure-carrying components. Air-brake system fittings, reservoirs and pneumatic couplings. Buy the certified part.

The rule of thumb that survives contact with a real fleet: print the cover, the bracket, the housing, the trim and the gauge — buy the thing that holds a load, carries pressure or holds a certificate.

Fire, Smoke and Toxicity Decides the Material First

This is the constraint that separates rail work from every other sector on this site, and the one that most often invalidates an otherwise sensible material choice. A part in an enclosed passenger vehicle has to behave acceptably in a fire — not just resist ignition, but limit smoke density and toxic gas when it does burn, because in a tunnel or an underground station smoke is what harms people.

Which standard applies depends on where and what you operate. In the United States, NFPA 130 governs fixed guideway transit and passenger rail systems, and the FRA's flammability and smoke-emission requirements in 49 CFR Part 238 apply to passenger equipment. In Europe, EN 45545-2 classifies materials by hazard level and application. Your engineering authority will tell you which requirement set and hazard level a given location on the vehicle carries; the shop cannot guess it and should not be asked to.

What that means practically:

PLA, PETG and unrated ABS or nylon do not belong on a passenger interior. They are perfectly good for shop tooling and for underframe or off-vehicle use where no fire requirement applies.
Flame-retardant engineering grades are the printable answer. PEI (sold as ULTEM 9085 and 1010) is the material most often specified for rail and aircraft interiors, with FR-grade polycarbonate, FR ABS and flame-retardant PA grades used depending on the requirement set.
Compliance belongs to a material on a machine, not to a process. Test data covers a specific material printed at specific parameters. Ask for the report, and ask which machine and lot produced your parts.
Not every provider runs these. A high-temperature machine and rated feedstock is a real capability filter, and it is far cheaper to ask at quote stage than to discover it at inspection.

Where the part lives	Sensible materials	What disqualifies the wrong choice
Passenger interior, saloon, cab	PEI (ULTEM), FR polycarbonate, FR ABS, rated PA grades	Unrated plastics fail the applicable FST requirement
Underframe, roof, non-passenger enclosures	PA12 (SLS), glass-filled nylon, ASA	UV and heat embrittle unstabilised grades outdoors
Obsolete metal fittings, tooling inserts	Stainless, aluminium via metal AM	Polymer cannot take the temperature or the clamp load
Shop jigs, gauges and handling aids	PLA, PETG, PA12, carbon-filled nylon	Nothing — no vehicle requirement applies
Gaskets, bump stops, chafe and vibration pads	TPU at a specified shore hardness	Rigid parts transmit vibration into their mounts

How to choose a 3D printing material covers the mechanical trade-offs in more depth. Grades differ between suppliers, so check claims against the datasheet for the exact material your provider runs rather than the generic family name.

Processes and When Each Fits

Process	Typical rail job	Why it wins here
FDM	Interior fittings in PEI, brackets, covers, cab trim	The only common route to rated high-temperature thermoplastics, and it scales to large panels
SLS nylon	Clips, ducting, housings with internal geometry	Tough, isotropic PA12 with no support scars inside the part
Metal AM	Obsolete cast or machined fittings, tooling inserts	Produces parts that no longer exist commercially at any quantity
Large-format	Interior panels, ducting sections, full-size fit checks	A one-metre part in one piece beats a bonded assembly of five
SLA / resin	Master patterns, fit-check models, appearance samples	Surface finish and detail; not a service material for vehicle duty

For most rail work the honest answer is FDM in a rated grade for anything on the vehicle, SLS for tough hidden hardware, and metal only where the part must be metal.

Reverse Engineering Is Most of the Job

Very little legacy rolling stock arrives with a usable CAD model. Three routes get you one, in ascending order of cost.

Measure and model. Calipers, a clear photograph with a scale in frame, and a designer for an hour or two. This covers more parts than most engineers expect — plates, spacers, bezels, escutcheons, simple housings.

3D scan. For moulded shapes, worn castings and compound curves, scanning captures the geometry and a designer rebuilds it parametrically. Remember that a scan of a broken part captures the break and a scan of a worn part captures the wear; someone has to decide what it looked like new. Reverse-engineering scanning services covers how that work is quoted, and scanning for quality inspection covers verifying the result against the original.

Redesign outright. Often the best answer. The original was designed for injection moulding at a volume you will never print, and it probably failed for a reason worth engineering out — a thin section at a stress riser, a snap feature that fatigued.

Whichever route you take, get the released STEP file with the parts. The file is the durable asset, not the plastic, and it is what converts a rescue into a standing spare — the argument made in full in 3D printed replacement and spare parts. Fleets that do this systematically end up with a digital spares library covering the twenty or thirty parts that break most, which is where the real savings sit.

What to Send for an Accurate Quote

Shops quote fast and accurately when all of this arrives together:

Geometry — a STEP file, or the failed part plus dimensioned photographs with a scale in frame.
Fleet and location on the vehicle — passenger saloon, cab, equipment room, underframe or off-vehicle. This determines the fire requirement, which determines the material and most of the price.
The applicable standard and hazard level — NFPA 130, 49 CFR Part 238, EN 45545-2 with the requirement set. Say so explicitly; do not leave it to be inferred.
The load and duty — steady, cyclic or shock, and the temperature range where it sits.
The critical interfaces — bolt patterns, pin and shaft diameters, the two or three features that must be right. Call those out rather than tolerancing the whole part; tolerances and accuracy in 3D printing explains why a blanket tolerance inflates a quote.
Quantity now and likely repeat — four this month and forty over three years is a different quote from four, once.
Documentation you need — material certificates, test reports, lot traceability. These are ordinary requests in rail and a genuine cost line; raise them before the quote, not after.

Choosing a Provider

Do they run rated materials? For anything passenger-facing this is the first filter, and it eliminates most general-purpose shops immediately. Ask which grades, on which machines, and what documentation comes with the parts.

Can they do the design work? For legacy fleets this matters more than printing capacity, because the file usually does not exist. Ask what reverse engineering costs and confirm you own the resulting model.

Will they handle documentation and traceability? Certificates, test reports and lot records are routine in a regulated fleet environment and awkward for a shop that has never been asked. Better to find that out at quote stage.

How do they treat confidentiality? Fleet drawings and part data are usually contractually restricted. NDAs and IP protection for 3D printing services covers what to have in place before files leave your network.

Are they near a maintenance facility? Proximity matters more in rail than the price difference usually does, because parts move with people and vehicles do not wait. The industrial Midwest and Northeast carry the densest supply — Illinois providers around the Chicago rail hub and Pennsylvania providers along the Northeast Corridor and its heavy-repair shops, with the Illinois and Pennsylvania state guides covering those supply bases in more depth. How to choose a 3D printing service has the general checklist.

Model the Parts Before the Fleet Needs Them

The agencies that get real value from this do not wait for a failure. During a scheduled overhaul, when vehicles are stripped and parts are on a bench anyway, they identify the fittings known to break and no longer available, have them modelled and material-qualified once, and file the STEP models with the test reports. The next failure is a purchase order against an existing file instead of a six-week engineering exercise — the point at which a printed part has stopped being a prototype and become an end-use component with a supply chain behind it.

Get Rail and Transit Parts Quoted

Work out which of the five groups your part belongs to, confirm the fire requirement that applies at its location on the vehicle, then send the geometry, the standard, the quantity and the documentation you need. Browse 3D printing providers and ask two or three. A shop that asks which hazard level applies before it quotes is telling you more about whether the part will pass inspection than the spread in their prices ever will. Post-processing and finishing is worth raising in the same conversation for anything a passenger will touch.

Related Resources

3D Printed Replacement and Spare Parts — the obsolete-part argument in full
3D Printing Services for Automotive Parts — the adjacent heat, vibration and fluids brief
Metal 3D Printing Services — when the fitting has to be metal
3D Printing Services for Jigs, Fixtures and Manufacturing Aids — the maintenance-shop entry point
How to Choose a 3D Printing Material — temperature, load and environment trade-offs
3D Printing Services in Illinois — the Chicago rail-hub supply base
Browse 3D Printing Providers — send the job out

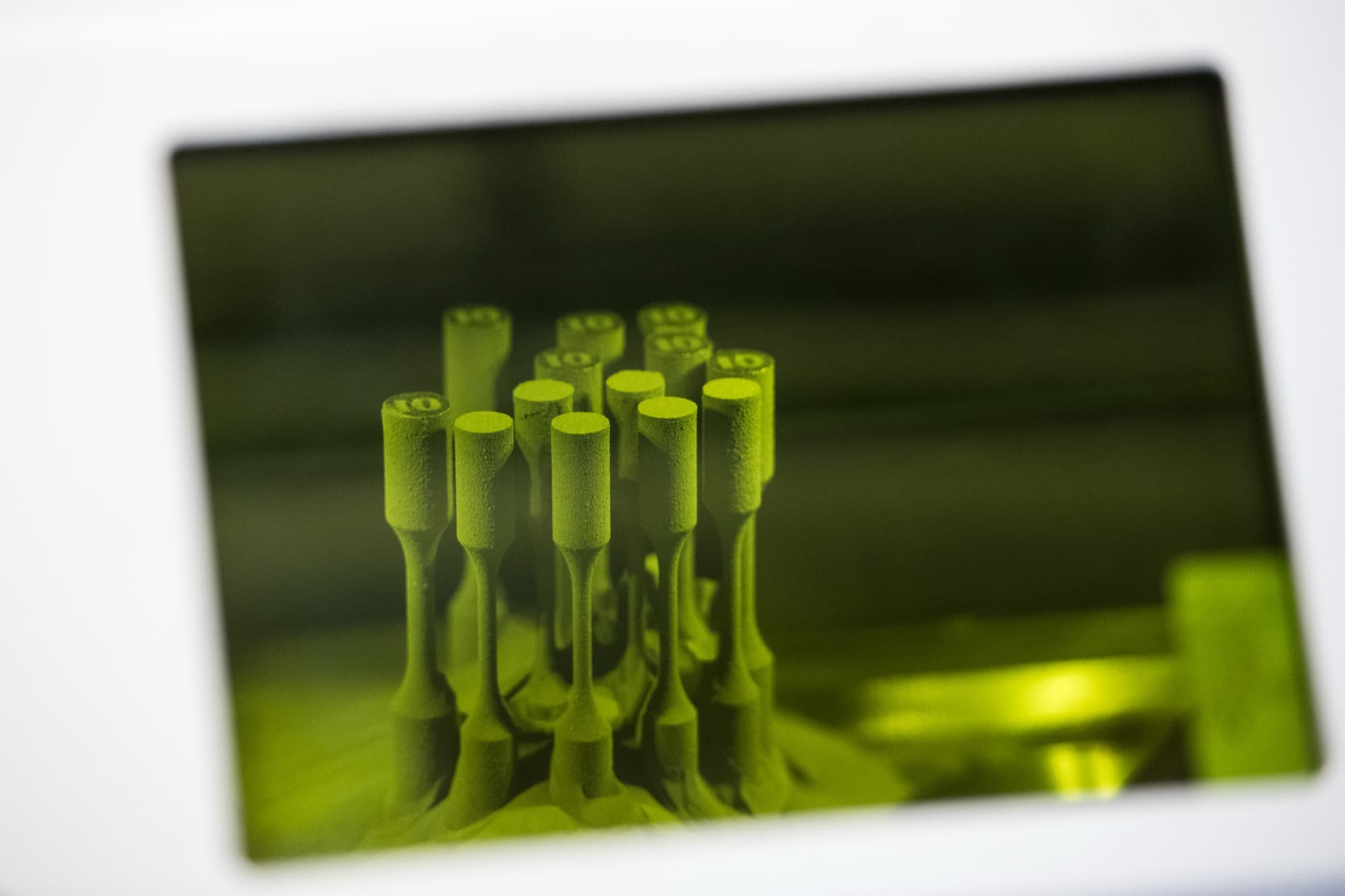

Hero photo by René Volfík via Wikimedia Commons (CC BY-SA 4.0).
