What is design for additive manufacturing (DfAM)?

DfAM is designing a part around how it will actually be built layer by layer, rather than designing it as though it were machined or molded and hoping it prints. In practice it means a handful of concrete decisions: how thick the walls are, how steep the overhangs get, which way the part is oriented on the plate, how much clearance you leave between mating features, and where supports will need to touch. It also means taking advantage of what printing gives you for free — internal channels, lattices, and consolidating a five-piece assembly into one part. Good DfAM usually lowers cost and raises success rate at the same time.

What is the minimum wall thickness for a 3D printed part?

It depends on the process, but useful defaults are around 1mm for most plastic processes and more if the wall carries load. On FDM, aim for at least two or three extrusion widths — roughly 0.8–1.2mm with a standard 0.4mm nozzle — because a wall thinner than the nozzle can't be reliably produced at all. SLA and resin can hold thinner walls, around 0.6–1mm, but thin resin walls are brittle and can warp during cure. SLS and MJF want roughly 0.7–1mm minimum so parts survive depowdering. Below these numbers you don't get a thin part; you get a failed or fragile one.

Why do my printed holes come out undersized?

Because of how the material behaves at a curved boundary, not because the printer is inaccurate. On FDM, the extrudate is laid along a polygonal approximation of the circle and the molten plastic pulls slightly inward as it cools, so vertical holes typically finish a few tenths of a millimetre under nominal. Resin and powder processes shrink during cure and sintering, with a similar result. The practical fixes are to oversize holes slightly in CAD, drill or ream critical holes to final size after printing, or specify the hole as a toleranced feature so the provider machines it. Never assume a printed hole is a bearing fit straight off the machine.

Which way should I orient my part on the build plate?

Orientation is the single highest-leverage decision in the whole design, and it trades three things off against each other: strength, surface finish, and cost. Layer-based parts are weakest across the layers, so orient the part so its main load runs within a layer rather than trying to pull layers apart — an FDM bracket loaded along Z can fail at a fraction of the same part rotated flat. Surfaces that face up or down come out cleaner than steep angled ones, and any surface a support touches will be marked. Taller orientations mean more layers and more time, so they cost more. Tell your provider which surfaces and which load direction matter; a good one will orient accordingly.

How much clearance should I leave between parts that fit together?

Start at roughly 0.3–0.5mm total clearance for FDM parts that need to move or assemble freely, and around 0.1–0.3mm for SLA and powder processes, which hold finer detail. For a press fit, go tighter — but expect to test. These are starting points rather than specifications, because clearance interacts with material shrinkage, orientation, and the specific machine. The reliable approach on anything that matters is to print a small test coupon of just the mating feature before committing to the full part. It costs almost nothing and saves reprinting an expensive part that assembles too tightly or rattles.

Do hollow parts need escape holes?

Yes, and forgetting them is one of the most common reasons a part gets flagged at quote review. In SLS and MJF the part is built inside a bed of powder, so any sealed internal cavity traps loose powder permanently — it adds weight, can leak out later, and can't be removed. Two escape holes of at least 3–5mm, positioned so powder can actually flow out, solve it. Resin processes have the same problem with trapped liquid: a sealed cavity forms a suction cup that can pull the part off supports or hold uncured resin inside. Add drain holes to any hollow resin part.

Design for 3D Printing — Rules That Cut Cost and Failures

Most parts that print badly were designed badly, not printed badly. A wall a hair too thin, an overhang a few degrees too steep, a hollow cavity with no way for powder to escape — these are decided in CAD, long before a machine is chosen, and they set the cost and the failure rate of everything downstream. Design for 3D printing is the difference between a part that comes off the plate ready to use and one that arrives warped, weak, or with a quote twice what you expected.

This guide covers the rules that matter most, what changes between processes, and how design decisions turn into line items on a quote. None of it requires specialist software — it's a set of decisions you make in the CAD you already use. When your geometry is ready, you can browse the 3D Prototyping Hub provider directory and send it to shops that run the process you need.

Why Design Drives Cost More Than Material Does

Buyers tend to assume price tracks material volume. It contributes, but the bigger levers are usually geometric:

Build height sets machine time on most processes. A part standing tall costs more than the same part lying flat, because time scales with the number of layers.
Support volume is material you pay for and then throw away — plus the labour to remove it and dress the scars it leaves.
Packing efficiency matters on powder processes, where you're effectively renting space in a shared build. An awkward shape that nests badly costs more than its volume suggests.
Post-processing is labour, and geometry decides how much. Deep pockets and internal supports are slow and expensive to clean up. See post-processing and finishing services for what that work involves.

Designing with those four in mind routinely takes a meaningful bite out of a quote without changing the part's function at all.

The Core Rules

Wall thickness. Give walls a real thickness — roughly 1mm as a working default across plastic processes, more where the wall carries load. On FDM specifically, think in extrusion widths: two to three passes of a 0.4mm nozzle, so 0.8–1.2mm. A wall thinner than the nozzle simply cannot be produced.

Overhangs and the 45° rule. On FDM, surfaces sloping more than about 45° from vertical begin to need support underneath. Design overhangs to stay within that angle and you eliminate supports entirely — along with their cost, their surface scarring, and the labour to remove them. Chamfer an overhanging edge instead of leaving it square and you often solve the problem for free.

Self-supporting holes. A horizontal hole prints as a circle with an unsupported top that sags. Shaping the top of the hole as a teardrop or a chamfered arch makes it self-supporting and dimensionally cleaner. Where you can, orient holes vertically instead — vertical holes come out considerably more accurate.

Orientation and anisotropy. Layer-built parts are weaker across layers than within them. This is most pronounced on FDM, where layer adhesion is genuinely the weak axis, and least on powder processes, which are closer to isotropic. Orient the part so its principal load runs within a layer. If you take one rule from this article, take this one — it changes part strength by a large factor at no cost.

Fillets and chamfers. Fillet internal corners to spread stress rather than concentrating it at a sharp root. Chamfer the bottom edge of the part slightly to counter "elephant's foot," the flare where the first layers squash outward against the plate.

Holes, fits and clearances. Assume printed holes finish undersized and printed pins finish oversized. For assemblies that must move or slide, start around 0.3–0.5mm total clearance on FDM and 0.1–0.3mm on resin and powder processes, then verify with a test coupon. For anything precise, print the feature with stock and have it drilled, reamed, or machined — see tolerances and accuracy in 3D printing for realistic expectations.

Escape and drain holes. Any sealed internal cavity is a trap: powder in SLS and MJF, uncured liquid in resin. Add at least two openings of 3–5mm so material can flow out. This is one of the most common reasons a file comes back with questions.

Text and fine detail. Embossed text survives better than engraved. Keep stroke widths comfortably above one extrusion width and give raised features enough height to resolve — very fine detail that looks fine on screen frequently disappears in the build.

Part consolidation. This is where additive genuinely beats the alternatives. An assembly of five machined pieces with fasteners can often be printed as one part with the same function — no assembly labour, no fastener stock, no tolerance stack-up. Look for it deliberately; it is usually the largest cost saving available.

What Changes by Process

Every rule above bends depending on how the part gets made, so the process is the first thing to fix. If it is still open, SLA vs FDM is the trade that decides most of this table: resin buys detail, FDM buys cost, and the design rules follow from which one you pick.

Process	Supports	Watch for	Design priority
FDM	Yes, above ~45°	Layer-direction weakness, warping on large flat areas, elephant's foot	Orientation and overhang angle
SLA / resin	Yes, marks surfaces	Trapped resin, cure shrinkage in thick sections, brittleness in thin walls	Drain holes, support placement
SLS / MJF	None — powder supports the part	Trapped powder, minimum gaps between nested parts	Escape holes, wall thickness
Metal (DMLS)	Yes — structural and thermal	Residual stress, thick sections, supports hard to remove internally	Support access, machining stock on critical faces

Powder processes remove the overhang constraint entirely, which is why complex organic geometry and internal channels usually route to SLS or MJF. Resin gives the finest detail but demands you think about where supports touch and where liquid can pool. FDM is the most constrained geometrically and the cheapest per part.

Metal deserves its own caution: supports there conduct heat as well as hold geometry, so they cannot simply be minimised, and critical faces should carry machining stock from the outset. See metal 3D printing services.

Mistakes That Get Flagged at Quote Review

Providers see the same handful repeatedly:

Sealed hollows with no escape route on a powder or resin process.
Knife edges — walls tapering to zero thickness, which cannot be built.
Uniform thin shells on large parts, which warp without ribbing.
Tolerances applied to every dimension, which forces the provider to quote machining on features that never needed it. Tolerance only what functionally matters.
A mesh exported too coarse, so curved surfaces arrive visibly faceted. Export at a finer chord height, and send STEP rather than STL when the part may be machined — STL vs STEP explains when each is right.
No indication of which surfaces matter, leaving orientation entirely to the provider's guess.

The fix for most of these is a short note accompanying the file: what the part does, which direction it's loaded, which surfaces are cosmetic, and which dimensions are critical. Preparing files for a quote covers the rest of what to send.

Design It, Then Get It Quoted

You do not need to design perfectly for a specific machine — that is what a good provider's design-for-manufacture feedback is for. What helps is designing so the constraints are respected and the intent is legible: sensible wall thicknesses, overhangs that stay shallow, holes that can be reached, cavities that can drain, and a clear statement of what the part has to survive.

Get those right and quotes come back faster, cheaper, and closer to what you imagined. Browse the 3D Prototyping Hub provider directory, send your geometry with a note on load direction and critical features, and ask for DFM feedback before the first build — most shops will give it, and it is the cheapest engineering review you will ever get.

Related Resources

Tolerances and Accuracy in 3D Printing — what dimensional accuracy to actually expect
How to Prepare Files for a 3D Printing Quote — export settings and what to include
STL vs STEP Files for 3D Printing — which format to send and when
Post-Processing & Finishing Services — how geometry drives finishing cost
How Much Does 3D Printing Cost? — the rest of the pricing picture
Browse 3D Printing Providers — send your design to a shop that runs your process

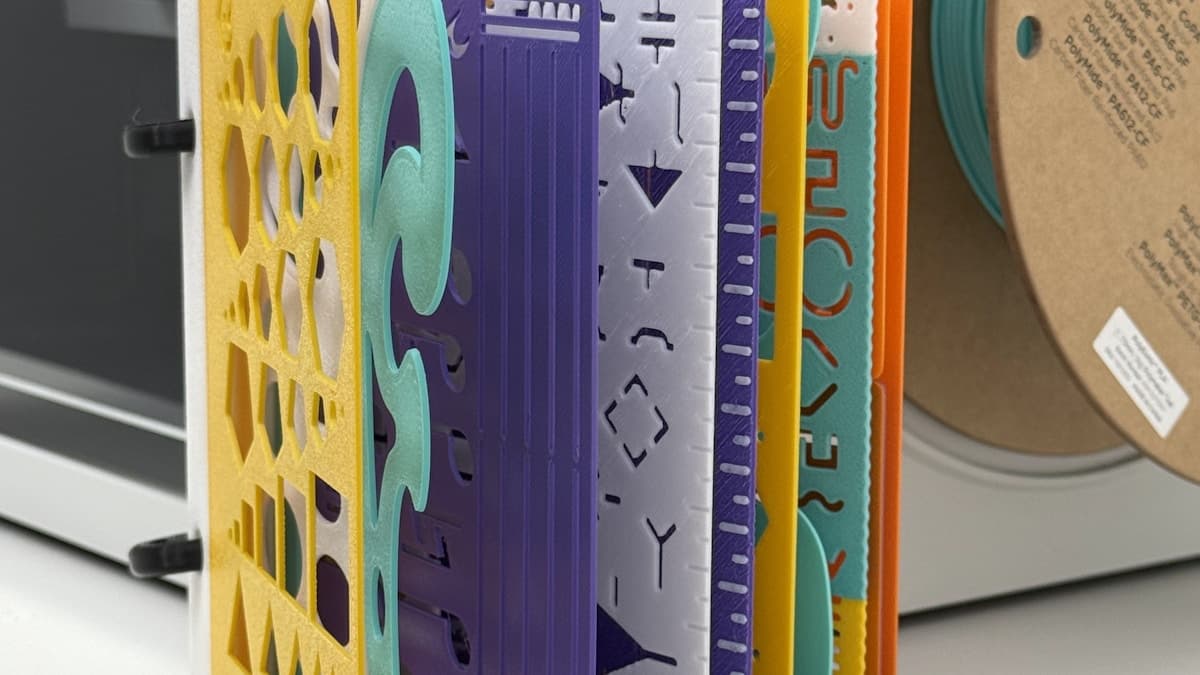

Hero photo by Snapmaker 3D Printer via Unsplash.
